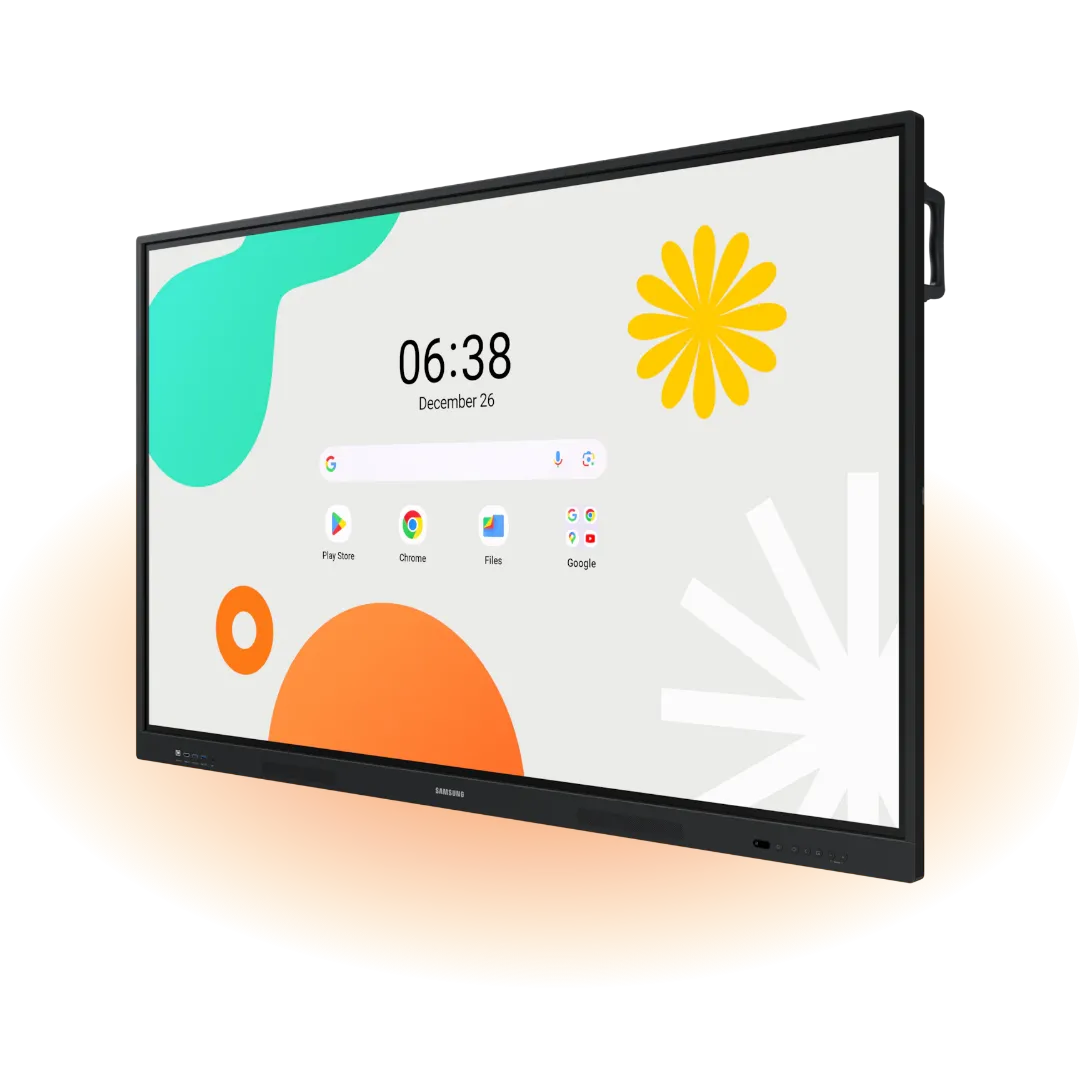

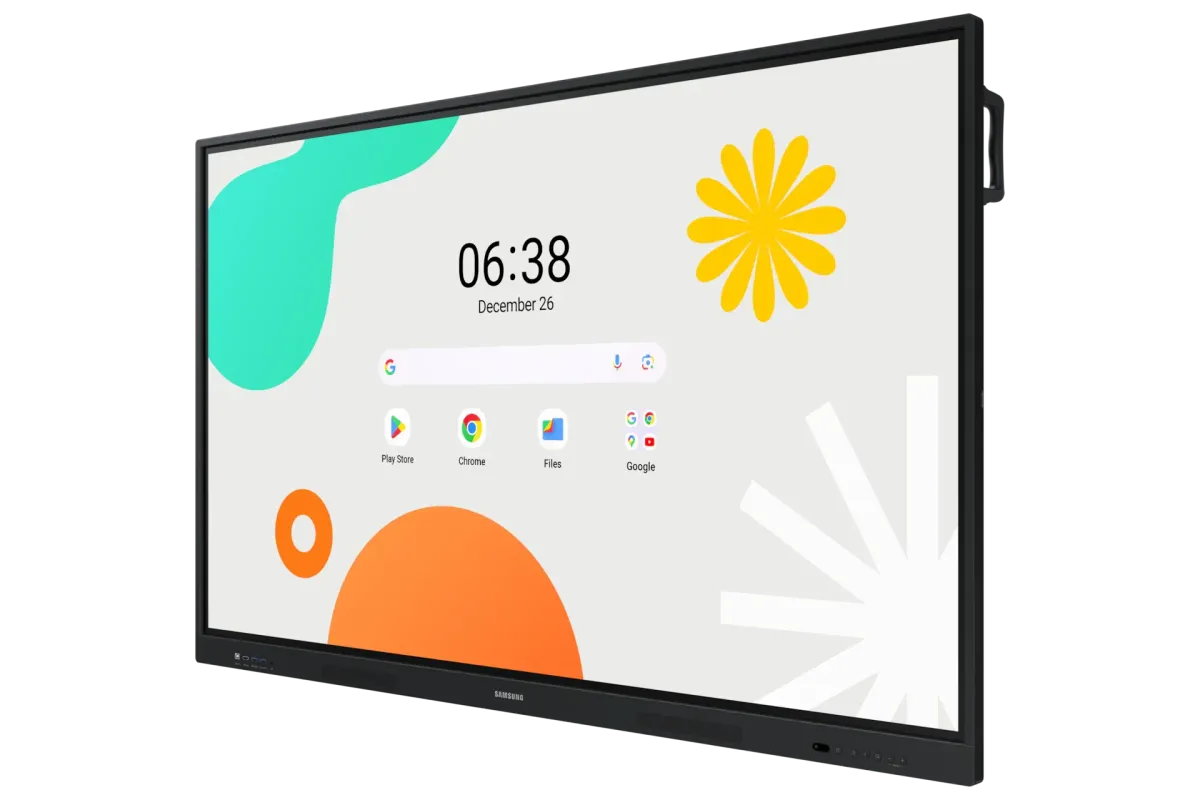

Samsung 75" Interactive Display (WA75F)
Specifications
• Samsung’s 75" Interactive Display WAF series powered by Android™ OS 14 enhances education with its easily-customizable home screen
• Compatible with other Android™ devices, display offers familiarity with standard functions
• EDLA-certified WAF series supports Google Play, YouTube, and other Google services
• OPS slot transforms the display into a Windows device when needed
See All Specs
Certification and Compliance
EMC
FCC CFR Title 47, Part 15, Subpart B/EN55032:2015+A11:2020
Safety
IEC62368-1/UL62368-1/IEC60950-1 / IS13252
Display
Screen Size
75"
Brightness (Typ)
400 nit
Resolution
3,840 x 2,160
Viewing Angle (H/V)
178/178
Diagonal Size
75"
Panel Type
IPS
Pixel Pitch (HxV)
493.5 x 493.5 mm
Response Time (ms)
8ms
Color Gamut
72%
Glass Haze
25%
H-Scanning Frequency
135 kHz
Maximum Pixel Frequency
78MHz
V-Scanning Frequency
60Hz
Operation Time Support
12/7
Diagonal Size
75"
Contrast Ratio
1,200:1
Connectivity
Bluetooth
Yes
WiFi
Wi-Fi 5: 802.11ac
External Control
Touch Input
RS232C In, RJ45 In
HDMI In
2
USB
4
Audio In
Stereo Mini Jack
Audio Out
Stereo Mini Jack
Video Out
Yes
RS232 In
Yes
RJ45 In
Yes
Version of HDMI
2.1
Version of HDCP
2.1
Internal Sensor
Eco Sensor
Ethernet speed
1 Gbps
WIFI Protocol
Wifi 5 (802.11ac)
Power
Power Supply
AC100-240V 50/60Hz
Power Consumption (Standby)
0.5
Power Consumption (On Mode)
450 W
Power Consumption (Sleep Mode)
0.5 W
Rating[W/h]
416
Max[W/h]
333
Typical[W/h]
215
Type
Internal
See All Features
Features
Key
EDLA Certified Android Model (Google Play supported)
Speaker Type
Bulit in Speaker (15W X 2CH)
H/W
Touch Overlay(IR), Front Connectivity, OPS I/F Support, Eco Sensor, WiFi/BT embedded
Orientation
Landscape
Touch
Touch Pen Type
Passive Pen
Object Recognition Range
Front Pen ：3mm
Back Pen：8mm
Eraser：≥9cm²
Touch Response Time
≤5ms
Touch Technology
IR
Drawing Speed (Touch latency)
≤45ms
Thickness
3.2T
Hardness
Mohs 5
# of Touch
40 points
Object Recognition Range (Minimum)
2mm
Type
IR
Internal Player
Processor
A73 X 4 + A53 X 4
Storage
64GB
Operating System
Android 14
RAM
8GB
Weight
Shipping Weight
129.6 lbs
Shipping Weight (lb)
129.6 lb
Package Weight
57.9kg/127.6lbs
Set Weight
49.2 kg
Accessories
Accessories
Included in Box
Power Cord, Remote Controller, HDMI Cable, Touch Pen(2ea, Black), USB Cable, Warranty/QSG
Optional Stand
N / A (3rd party company stand/mount can be supported through VESA)
Optional Mount
N / A (3rd party company stand/mount can be supported through VESA)
Mechanical Specs
VESA Mount
800 X 400
Protection Glass
Yes
Stand Type
Wall Mount
Media Player Option Type
OPS Slot support
Rotation
Landscape only
Power Cable Length
3m
Operation Conditions
Temperature
0℃~40℃
Humidity
10 ~ 80%, non-condensing
Operating Temperature
0℃~40℃
Mechanical Specification
VESA Mount
800 x 400 mm
Bezel Color
Black
Bezel Width
17.2mm
Frame Material
Aluminium
Set Dimension (in)
1716.5×1031.8×86.9mm/67.6×40.6×3.42
Package Dimension (in)
1840x1125x185mm/72.4×44.3×7.3
Optional Feature
Touch
Yes
Check Out Classroom Upgrade Options

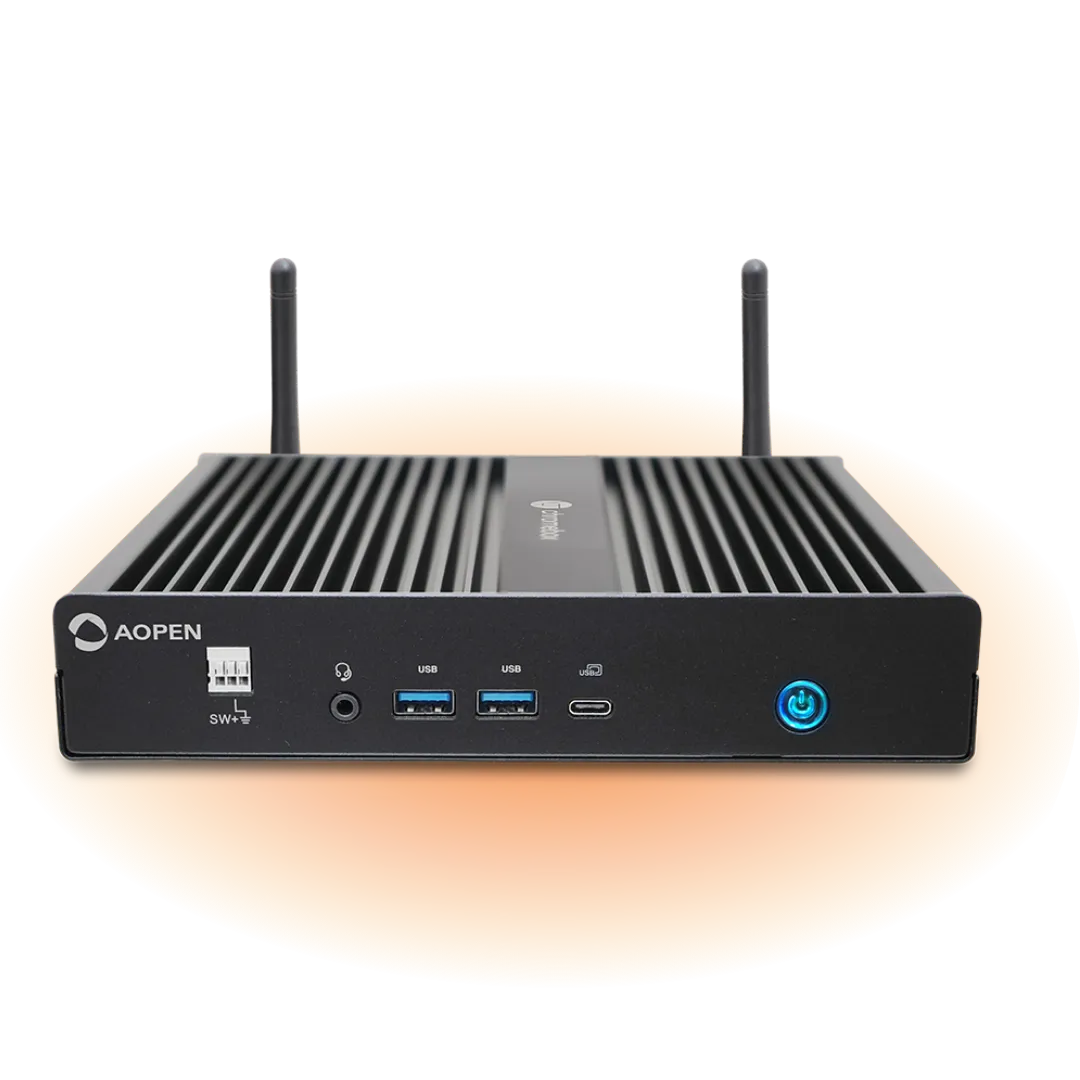

AOPen Chrombox Slot in PC
